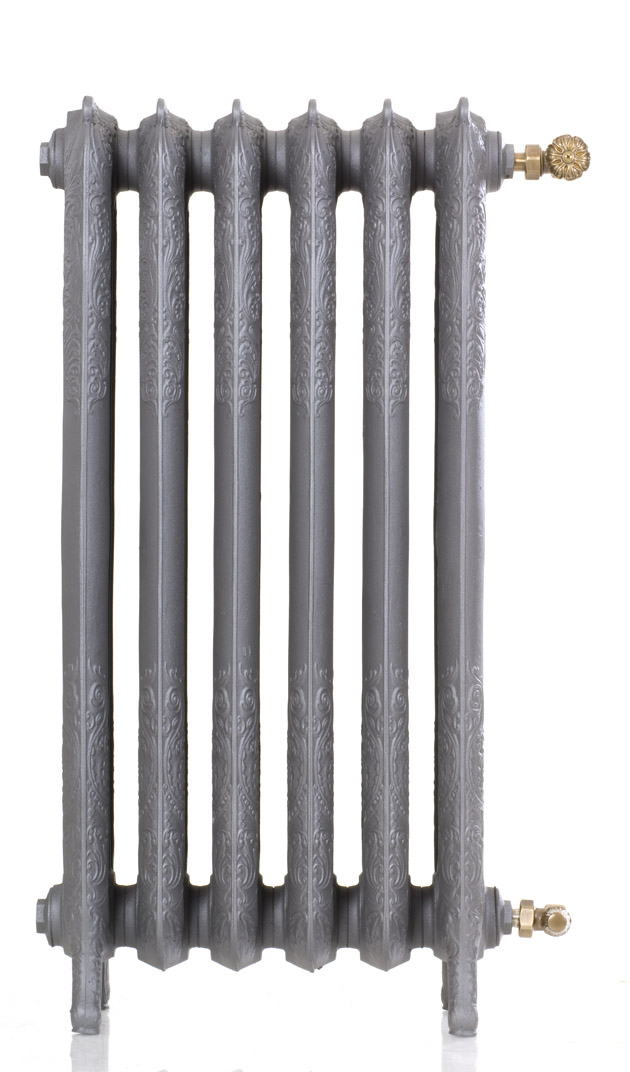

Voltaire 97

• Available colours:

standard colours: cast iron grey, matt grey, matt black, pearl black.

optional colours: bright white, antique black, antique copper, antique gold, all RAL colours.

• 11 Dimensions : → Clic for the schema

H96,1 cm x L41,4 cm – 91 kg – 935W
H96,1 cm x W49,1 cm – 108 kg – 1122W
H96,1 cm x W56,8 cm – 126 kg – 1309W
H96,1 cm x W64,5 cm – 144 kg – 1496W
H96,1 cm x W72,2 cm – 162 kg – 1683W
H96,1 cm x W79,9 cm – 180 kg – 1870W
H96,1 cm x W87,6 cm – 197 kg – 2057W
H96,1 cm x W95,3 cm – 215 kg – 2244W
H96,1 cm x W103 cm – 233 kg – 2431W
H96,1 cm x W110,7 cm – 251 kg – 2618W
H96,1 cm x W118,4 cm – 268 kg – 2805W

(Puissance EN442, 75/65/20, Δt 50°C)

Highly resistant, cast iron has an extraordinary quality of heating, it has survived the centuries (used for heating over 150 years).

Made in Europe, the BELLE EPOQUE cast iron radiators come in several heights and finishes upon request. Available in Glossy White, Matte Black, Black Pearl, Cast Iron Gray or in such rarer finishes as Antique Gold and Antique Copper. They benefit from the latest manufacturing technology and are finished with fume-free, non-toxic and environmentally friendly paints.

Maximum operating pressure: 8 bars. Pressure testing: 10,50 bars. Maximum output: 110°C Exponent: n = 1.2665

• Imperative : The quality of water is required to meet the standards VDI 2035 for the cast iron radiators : a low conductivity below 100 μS.PH, a TH of 0.2 and a PH between 7 and 10. More information on : https://www.cinier.com/it/belle-epoque/
• CAST IRON model, run by professionals suitable for handling and weighing the model
• We recommend to use sleeving kits to minimize installation completion.
